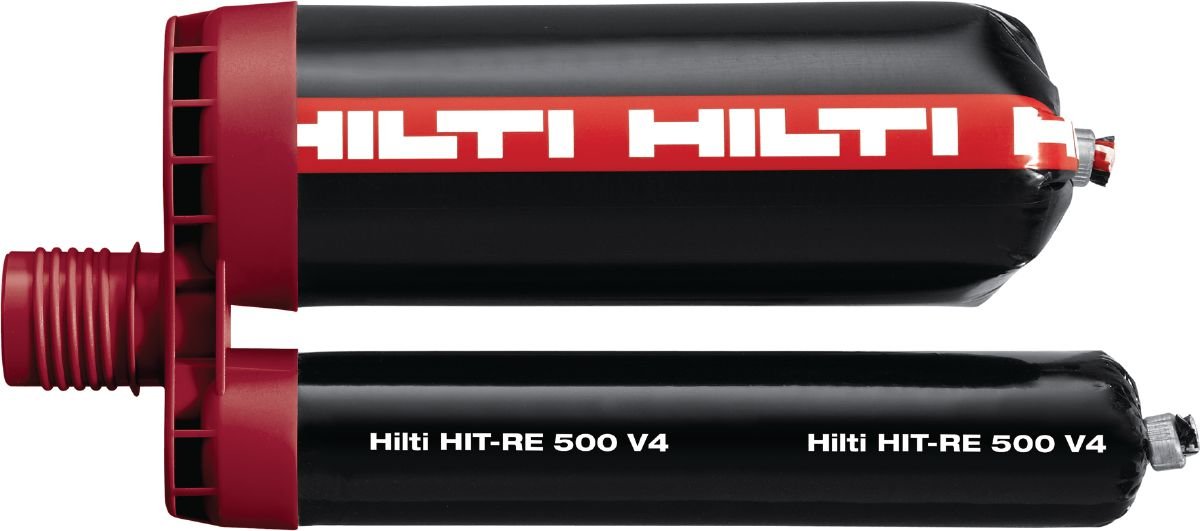

HIT-RE 500 V4 Epoxy anchor
Economical injectable epoxy mortar for anchoring in concrete
- Base material condition: Dry, Wet
- Approvals / test reports: ETA, Fire
- Seismic loading: Yes
GET A QUOTE
Share your details, and our experts will get back to you shortly.
Features
Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic
The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – rigid connections can now be designed and executed with post-installed rebars without splices according to the newest design method TR069
Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes, extremely deep injections, large diameters and at temperatures down to -5°C / 23°F
Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions
Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method
APPLICATIONS
Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members
Anchoring structural steel connections (e.g. steel columns, beams, etc.)
Fastening structural baseplates, including in cracked concrete and challenging seismic conditions
Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir
TECHNICAL DATA
- Base materials: Dry, Wet
- Approvals / test reports: ETA, Fire
- Seismic loading: Yes
- Fatigue loading: Yes
- Fire resistance: Yes
- PROFIS software: Yes
- Environmental conditions: Outdoor
- Cleaning procedures: Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning
- Storage and transportation temperature range: 5 – 25 °C
- In-service temperature – range: -40 – 55 °C
- Free of styrene: Yes
- Type of fastening (global): Pre-fastening, Through-fastening
