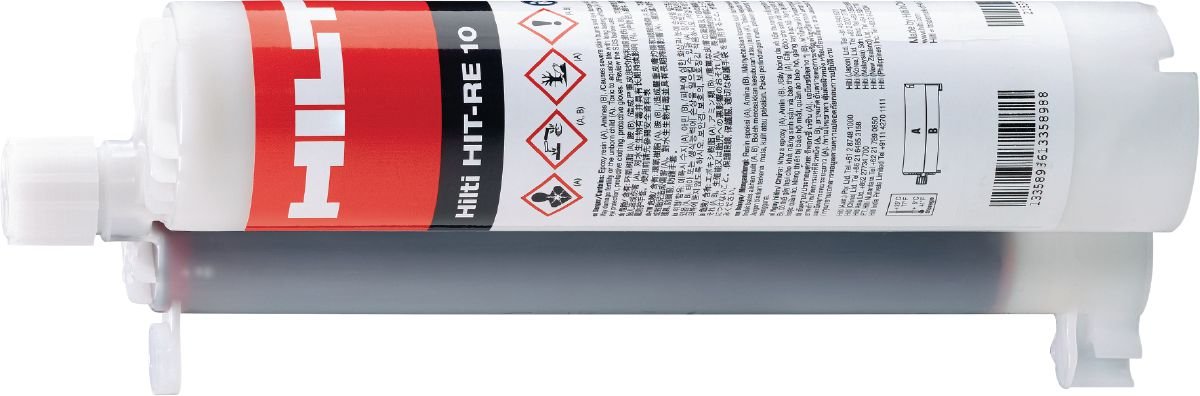

HIT-RE 10 Epoxy anchor
Economical injectable epoxy mortar for anchoring in concrete
- Base materials: Concrete (non-cracked)
- Base material condition: Dry, Wet
- Seismic loading: No
Features
- The economical injection mortar solution that can replace virtually all grout fastenings
- Suitable for post-installed rebar and concrete anchoring applications in accordance with Hilti technical data
- Compatible with Hilti’s full range of accessories (e.g. cordless electric dispenser, steel brushes, piston plug)
- Available in 580 ml hard cartridge, suitable for use under severe on-site conditions
- Allows flexible installation due to the long working time
- Allows flexible installation due to the long working time
APPLICATIONS
- Substitution of misplaced/missing rebar
- Connection of secondary post-installed rebar (e.g. staircases, upstands)
- Renovation/upgrading of post-installed rebar Rebar dowelling
- Anchoring non-structural secondary steel elements (e.g. columns, beams)
TECHNICAL DATA
- Base materials: Concrete (non-cracked)
- Base material condition: Dry, Wet
- Seismic loading: No
- Fatigue loading: No
- Fire resistance: No
- PROFIS software: No
- Anchoring elements: HAS-U threaded rods, Rebar
- Environmental conditions: Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast)
- Cleaning procedures: Compressed-air cleaning, Manual cleaning
- Storage and transportation temperature range: 5 – 25 °C
- In-service temperature – range: -40 – 55 °C
- Free of styrene: Yes
- Type of fastening (global): Pre-fastening, Through-fastening
